Brand Name : Tain Turbo
Model Number : TD04L
Certification : ISO9001:2000
Place of Origin : China
MOQ : 1 PC
Payment Terms : Western Union, MoneyGram, T/T, D/P, D/A, L/C
Packaging Details : neutral package

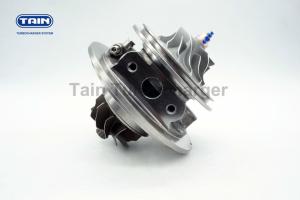

Product : Turbocharger Cartridge
Model : TD04L
Turbo No. : 49377-07401 ,49377-07402 ,49377-07403, 49377-07404 ,49377-07405
Chra NO. : 49377-09040
Material : K418+42CrMo+C355+HT250 Gray iron
Balancing test : <5mg.mm / 5000RPM
Engine No. : 076145701Q , 076145701E , 076145701B , 076145701L
Model: TD04L
Turbo No. :
49377-07401 49377-07402 49377-07403
49377-07404 49377-07405 49377-07406
49377-07440
ENGINE No.: 076145701Q , 076145701E , 076145701B , 076145701L
Balancing Test : SCHENCK TB-Sonio
Condition: Brand new
Fitted Cars :
Volkswagen Crafter 2.5L 120KW 2006 R5 2.5 TDI LT3 Euro4
Mitsubishi TD04L.4T 2.5L
Turbine wheels size information
Turbine Wheels | ||
(A) Inducer | (B) Exducer | Blades |
47.2 | 41.25 | 11 |
Compressor Wheels | ||
(A) Inducer | (B) Exducer | Blades |
38.4 | 51 | 6/6 |
Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Our technical team was composed by one advanced engineer with 15 years experience and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbo chras and always keep our producs quality in a high level.
